- Order number: 9320400022
STP 22NE10L Transistor N-MOSFET/IRL540N Genuine part no.5220-15710-00 This replaces many... more
Product information "STP 22NE10L Transistor N-MOSFET/IRL540N"

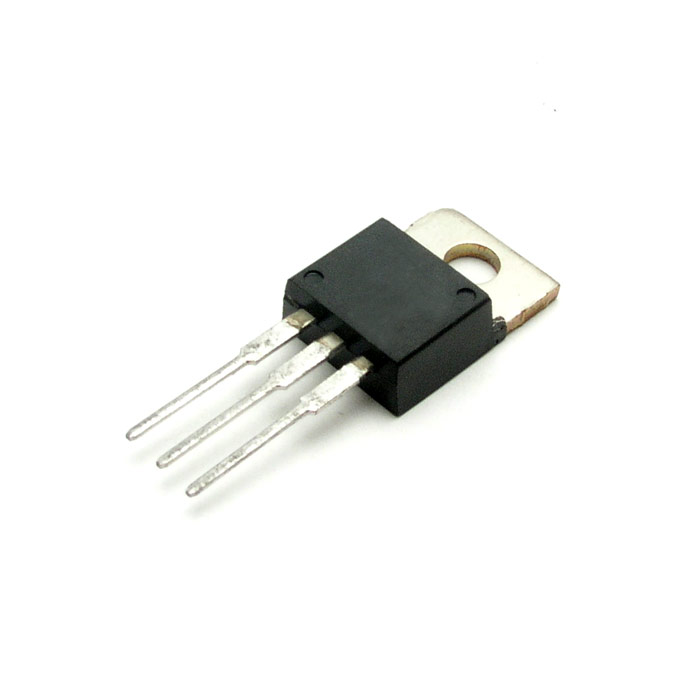

STP 22NE10L Transistor N-MOSFET/IRL540N
Genuine part no.5220-15710-00
This replaces many previous transistors used in Gottlieb, Data East, Sega, Stern and Capcom pinball games.
Equivalent to:
20N10L
STP20N10L
P20N10L
12N10L
22NE10L
IRF530
STP22NE10L
P22NE10L
19N06L
NTE2987
NTE2396
Technical Data:
Family: MOSFETs - Single
Mounting Type: Through Hole
FET Polarity: N-Channel
Drain to Source Voltage (Vdss): 100V
Current - Continuous Drain (Id) @ 25° C: 28A
Rds On (Max) @ Id, Vgs: 77 mOhm @ 17A, 5V
Input Capacitance (Ciss) @ Vds: 2200pF @ 25V
Power - Max: 150W
Gate Charge (Qg) @ Vgs: 64nC @ 5V
Package / Case: TO-220AB
